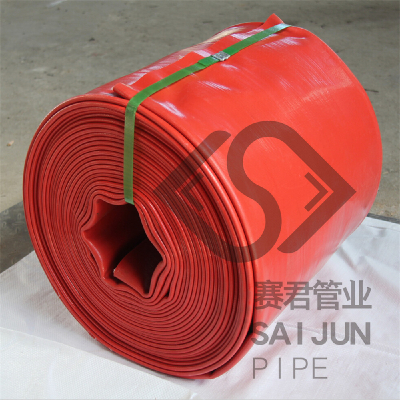

1. PVC lay flat flexible irrigation hose
PVC flexible sewer hose from Linyi Saijun Pipe
This hose is designed as a standard duty hose for water discharge in Agricultural Irrigation, industrial and construction applications,and is economical and rolls up flat for easy and storage , resists kinking and twisting.
Tube: PVC compound
C over:PVC compound
Reinforcement: High strength polyester yarn jacket
Temperature: - 2 0 to +80 degree
Low and Medium Pressure PVC Lay Flat Hose | |||||
Inch | Diameter (mm) | Thickness (mm) | W.P. (Bar) | B.P. (Bar) | Length (m/roll) |
1 | 25.4 | 1.4-2.2 | 2-10 | 6-30 |
200m max
|
1 1/2 | 38.1 | 1.4-2.2 | 2-10 | 6-30 | |
2 | 50.8 | 1.4-2.4 | 2-10 | 6-30 | |
2 1/2 | 63.5 | 1.5-2.4 | 2-10 | 6-30 | |
3 | 76.2 | 1.5-2.5 | 2-10 | 6-30 | |
4 | 102 | 1.5-2.6 | 2-10 | 6-30 | |
5 | 127 | 1.5-2.6 | 2-10 | 6-30 | |
6 | 152 | 1.6-2.8 | 2-10 | 6-30 | |
8 | 203 | 1.8-3.0 | 2-10 | 6-30 | |
10 | 254 | 2.0-3.2 | 2-10 | 6-30 | |
12 | 304 | 2.4-3.4 | 2-10 | 6-30 | |
2. PVC /NBR lay flat flexible irrigation hose
PVC flexible sewer hose from Linyi Saijun Pipe
Construction :
Th e hose is made from extruded thermoplastic polyester based 70% PVC with 30% NBR . The reinforcement is made from circular woven filament polyester yarn.
The "extrusion through-the-weave" production method gives a very strong bonding
between cover and lining as well as firmly encapsulating the woven polyester.
Feature :
UV resistance, lighter and less bulky than most rubber discharge hose.
Resist abrasion and weathering, Resi t kinking and stretching while in service.
More economic solutions replace NBR layflat hose and TPU layflat hose in some cases.
Application:
Suitable for use and recommended for industrial and agriculture applications in: Dewatering and operations, Frac water transfer, Distribution of slurry and manure as fertilizer. Fuel, oil and chemical transfer.
High Pressure PVC with NBR Lay Flat Hose | |||||
Inch | I.D. (mm) | Thickness (mm) | W.P. (Bar) | B.P. (Bar) | Length (m/roll) |
1 | 25.4 | 2.2-2.8 | 10-25 | 30-75 |
200m max |
2 | 38.1 | 2.2-3.0 | 10-25 | 30-75 | |
2 1/2 | 50.8 | 2.2-3.5 | 10-25 | 30-75 | |
3 | 63.5 | 2.2-3.5 | 10-25 | 30-75 | |
4 | 76.2 | 2.2-4.0 | 10-25 | 30-75 | |
5 | 102 | 2.2-4.0 | 10-25 | 30-75 | |
6 | 127 | 2.2-4.0 | 10-15 | 30-45 | |
8 | 152 | 2.2-4.0 | 10-15 | 30-45 | |
10 | 203 | 3.0-4.0 | 10 | 30 | |
12 | 254 | 3.0-4.0 | 10 | 30 | |
PVC flexible sewer hose from Linyi Saijun Pipe
PVC flexible sewer hose from Linyi Saijun Pipe
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll. Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually MOQ is 1000m
4. Other pvc water hose
1''-12'' diameter PVC LAYFLAT HOSE (Non smell quality & smelling quality )
5mm -51mm diameter PVC GARDEN HOSE (Non smell quality & smelling quality )
3/4'' -8'' diameter PVC SUCTION HOSE (Non smell quality & smelling quality )
8mm-152mm PVC STEEL WIRE HOSE (Non smell quality & smelling quality )
Join us!
We need agents in each country and agents from Africa, Eastern Europe, Middle East, Southeast Asia and South America are prime consideration.
Skype:qiaofangwin8
Whatsapp:008615762983159
Email: fang (@) lysjsdc.com
QQ:2285548034
